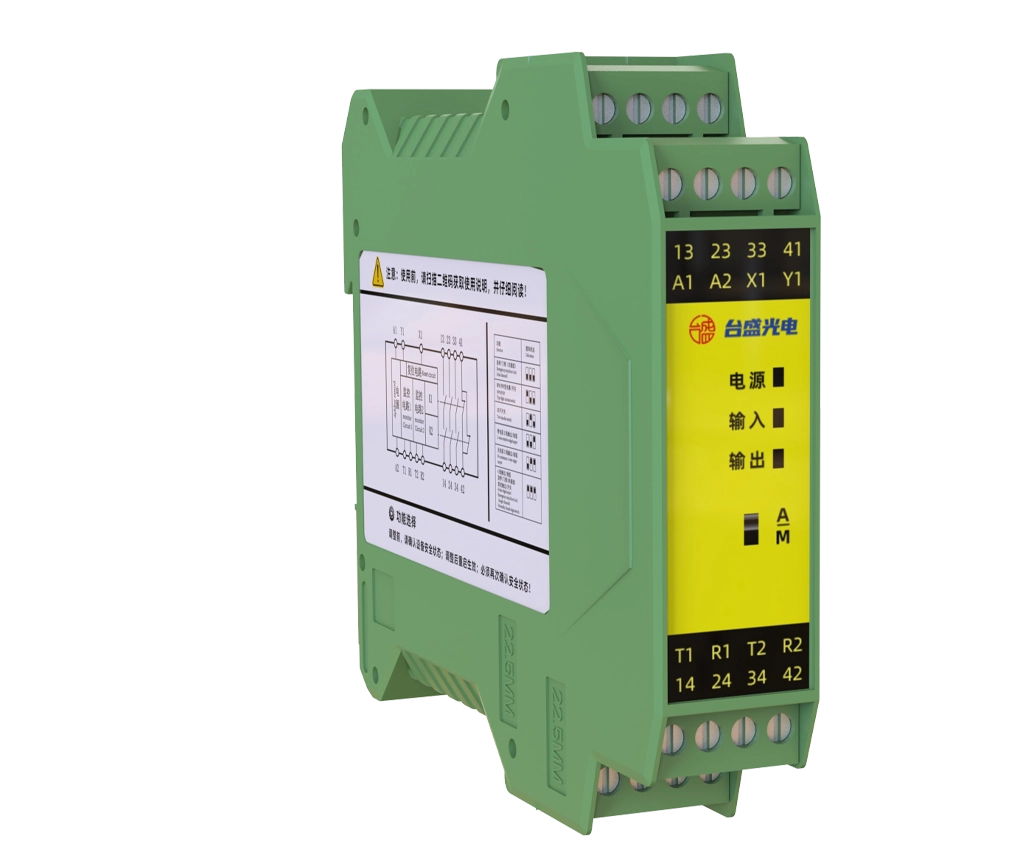

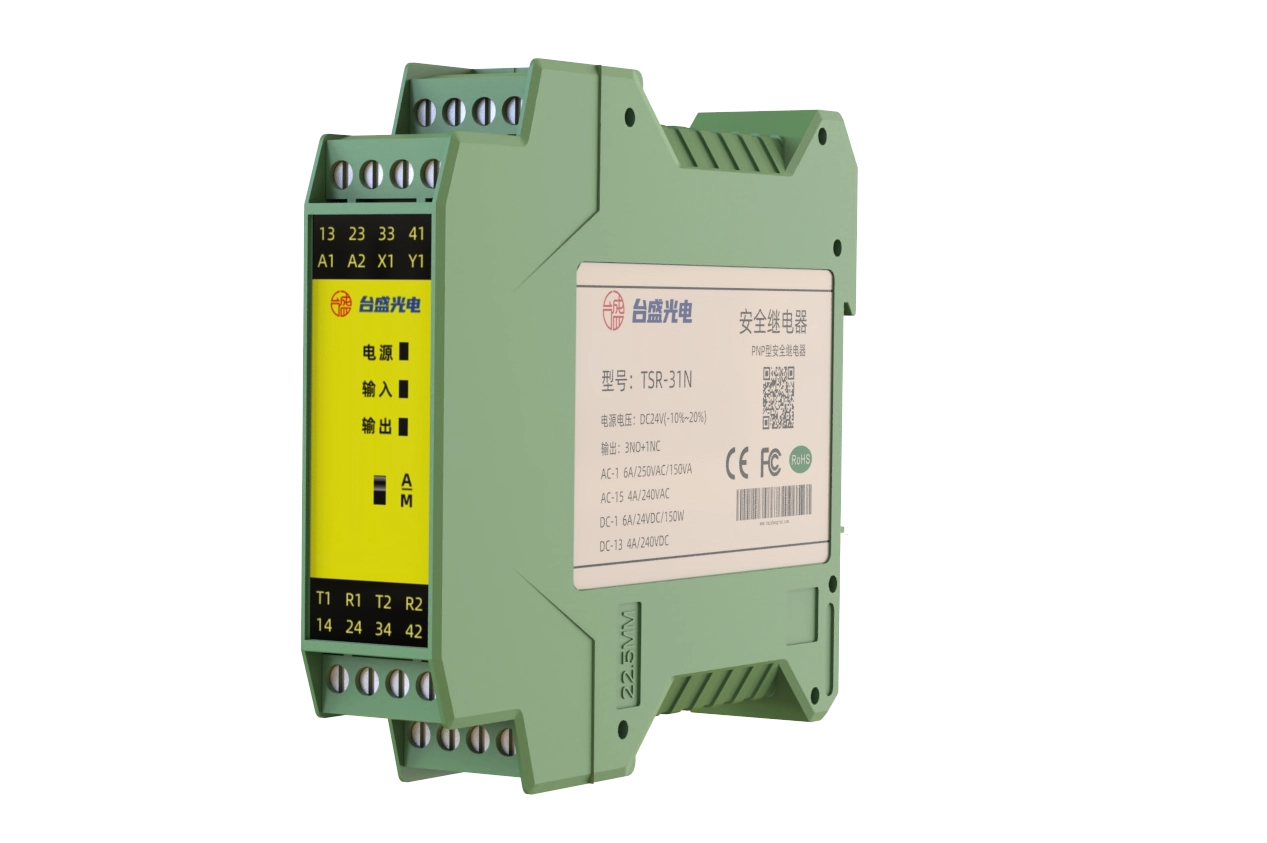

安全继电器 TSR 系列
符合国际标准的安全产品与解决方案
标准经典22.5mm外壳，通用性强
外形尺寸：115mm*100mm*22.5mm DIN导轨安装固定
多路安全输出
3路NO(常开)安全输出触点和1路NC(常闭)辅助输出触点的安全继电器。它具有单、双通道操作，手动或自动复位，以及通道间短路监控等功能。
| 型号 Model：TSR-31P/N | |
| 电源 power supply | |
| 供电电源 Power supply | 24V DC |
| 电压容差 Voltage tolerance | +10%/−20% |
| 功耗 Power consumption | 2.9W |
| 输出 Output | |
| 继电器安全输出 Relay safety output | 3NO+1NC |
| 晶体管信号输出 Transistor signal output | <500mA 24VDC |
| 继电器触点容量 Relay contact capacity | |
| AC−1 | 6A/250VAC/1500VA |
| AC−15 | 4A/240VAC |
| DC−1 | 6A/24VDC/150W |
| DC−13 | 4A/24VDC |
| 最大切换容量 Maximum switching capacity | 12A(分配在所有安全输出触点上)(Assigned on all safety output contacts) |
| 接触电阻 Contact resistance | <100mΩ |
| 最小负载 Minimum load | 10mA/5V |
| 触点材质 Contact material | AgSnO2 + 0.2μmAu |
| 常规参数 General parameters | |
| 输出熔断器（外接）Output fuse (external) | 5A gL/gG |
| 释放响应时间 Release response time | <30ms（从输入到输出）(From input to output) |
| 输入部件尾端检知电阻（触边/地毯） Resistance detection at the end of the input component (touch edge/carpet) |
1kΩ～10kΩ |
| 电气寿命 Electrical life | 80000 次 |
| 污染等级 Pollution level | 2 |
| 工作温度 Operating temperature | -25℃～65℃ |
| 工作湿度 Working humidity | 35%~85%（未结冰或凝露）(Unfreezing or condensation) |
| 冲击耐受电压 Shock withstand voltage | 2.5kV |
| 防护等级 Protection level | 外壳 IP30，端子 IP20，推荐安装于柜体或壳体 IP54 Case IP30, terminal IP20, recommended to be installed in cabinet or housing IP54 |
| 存储温度 Storage temperature | -40℃～105℃ |
| 外壳材质 Housing material | 阻燃 PA66 Flame retardant PA66 |
| 安装方式 Installation method | 标准 35mmDIN 导轨/弹簧卡扣 Standard 35mm DIN rail/spring buckle |

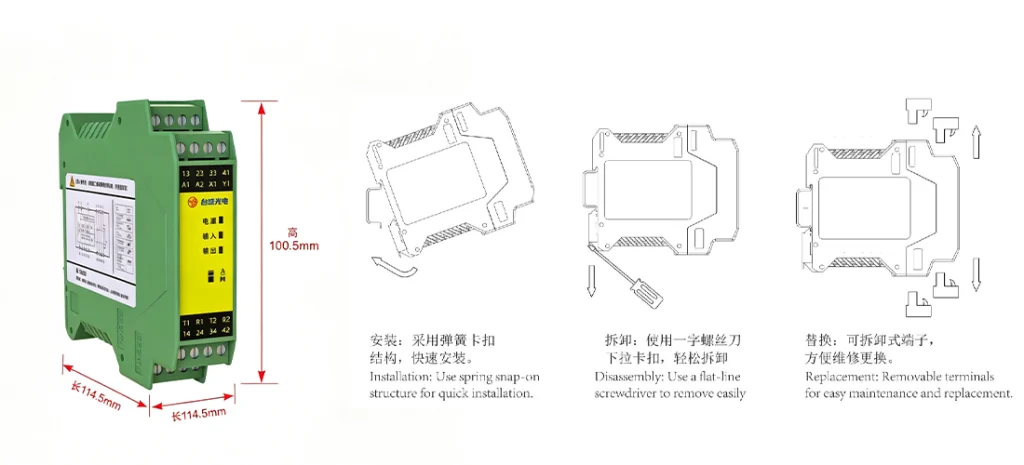

| 尺寸 size | 114.5mm×100.5mm×22.5mm |
| 重量 weight | 172g |
| 连接参数 Connection parameters | |
| 刚性导线可用横截面范围 Available cross-section range of rigid conductors |
0.5~2.5mm² |
| 柔性导线可用横截面范围 Available cross-section range of flexible conductors |
0.5~2.5mm² |
| 最小导线横截面 Minimum wire cross-section | AWG 24 |
| 最大导线横截面 Maximum wire cross-section | AWG 12 |
| 剥线长度 Stripping length | 8mm |
| 最小紧固扭矩 Minimum tightening torque | 0.5 Nm |
| 最大紧固扭矩 Maximum tightening torque | 0.6 Nm |
| 标准应用 Standard Application | |
| 符合 conform to |
EN 60947-1:2007/A2:2014 |
| EN 60947-5-1:2004/A1:2009 | |
| EN ISO 13849-1:2015 | |
| EN 62061:2005/A2:2015 | |
| CE | |
| 接线示意图 Wiring Diagram |

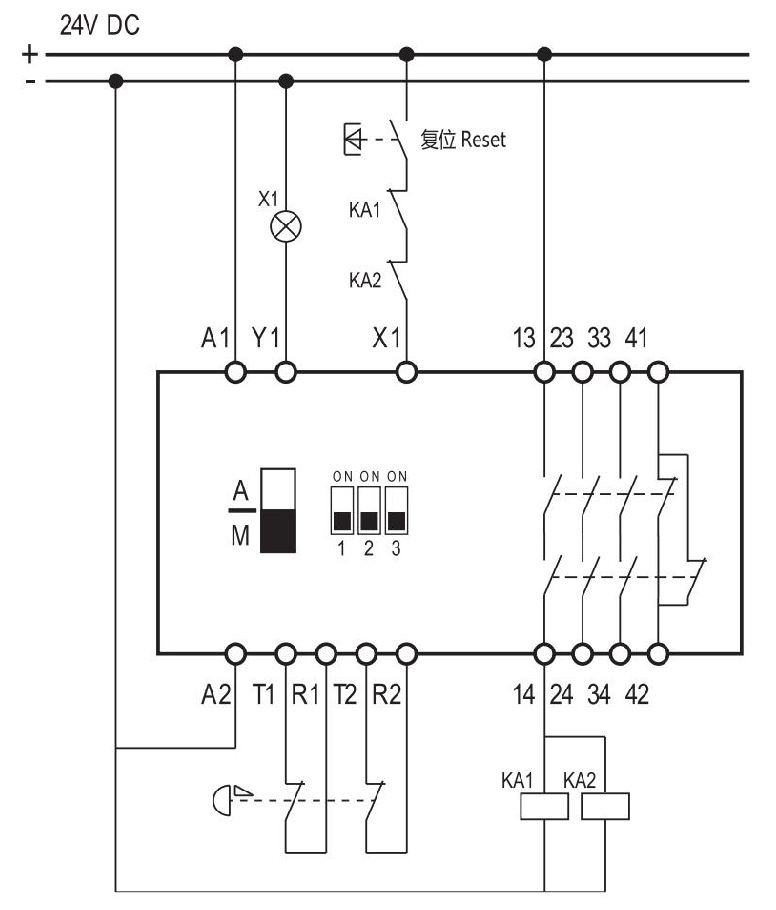

1. 双通道急停安全输入，带手动复位，指示灯输出
Dual-channel emergency stop safety input, with manual reset, indicator light output
Dual-channel emergency stop safety input, with manual reset, indicator light output

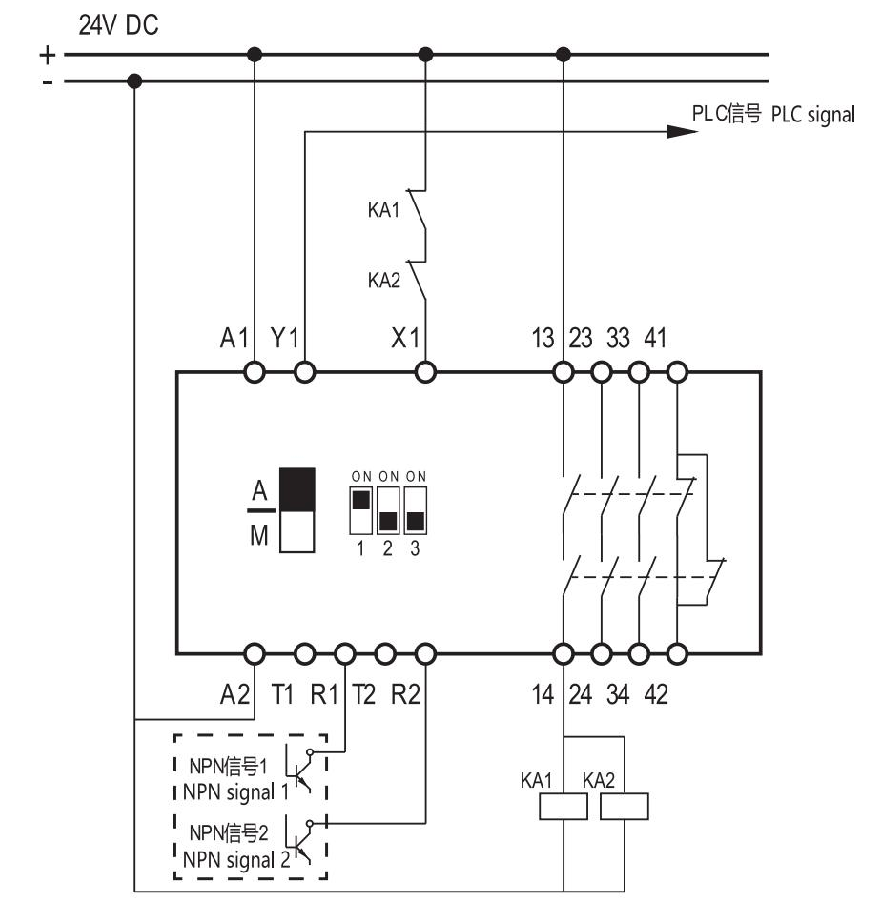

2. 双路 NPN/PNP型光幕/开关安全输入，带自动复位，PLC信号输出
Dual NPN/PNP type light curtain/switch safety input, with automatic reset, PLC signal output
Dual NPN/PNP type light curtain/switch safety input, with automatic reset, PLC signal output

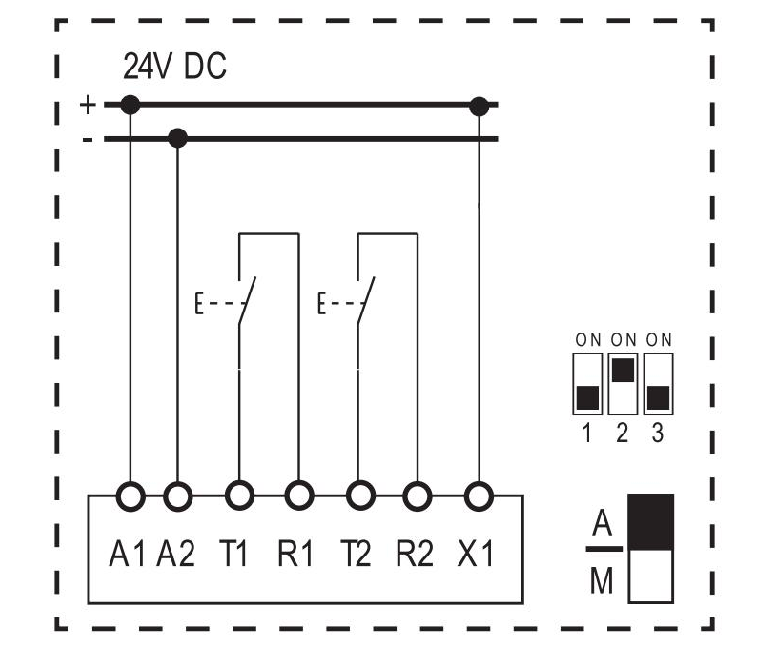

3. 双手开关安全输入，自动复位，双通道时差0.5s
Safety input of two-hand switch, automatic reset, dual channel time difference of 0.5s
Safety input of two-hand switch, automatic reset, dual channel time difference of 0.5s

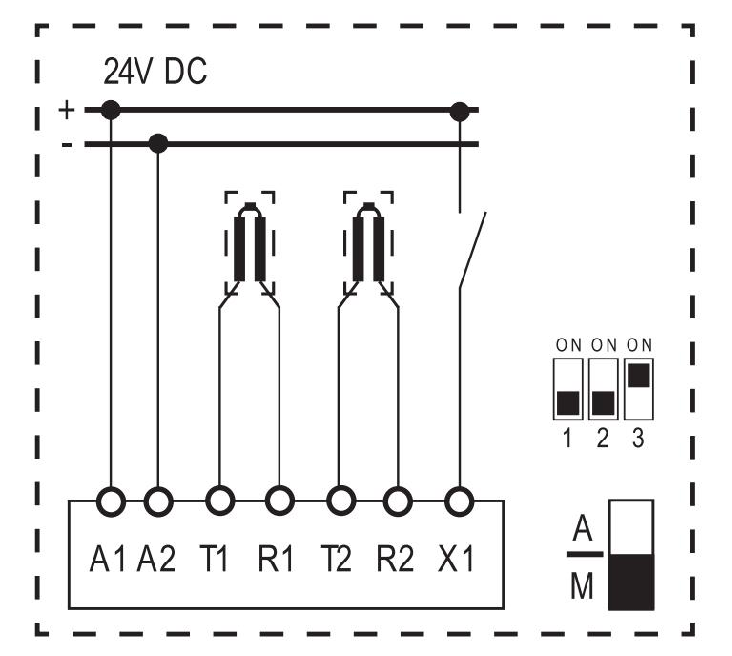

4. 2线触边/地毯（带电阻）安全输入，带手动复位
2-wire edge contact/carpet (with resistor) safety input with manual reset
2-wire edge contact/carpet (with resistor) safety input with manual reset

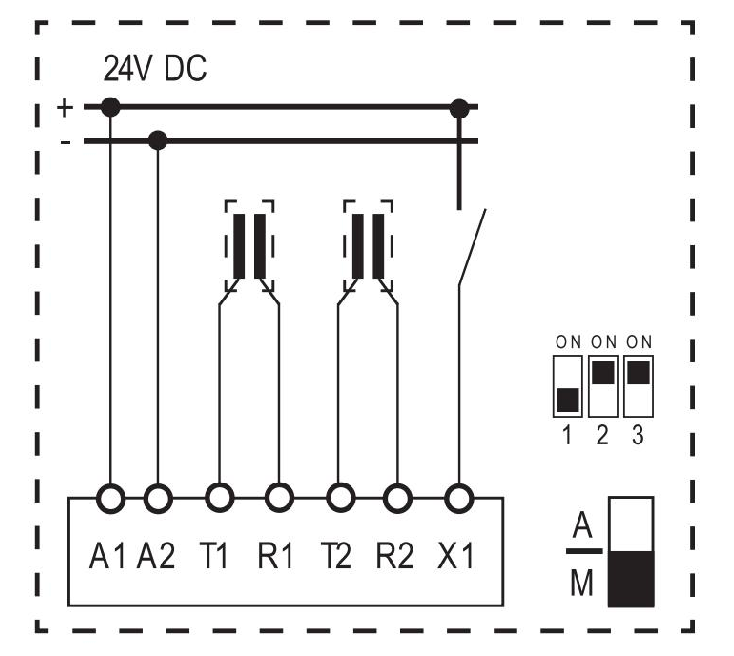

5. 2线触边/地毯（无电阻）安全输入，带手动复位
2-wire edge contact/carpet (no resistance) safety input with manual reset
2-wire edge contact/carpet (no resistance) safety input with manual reset

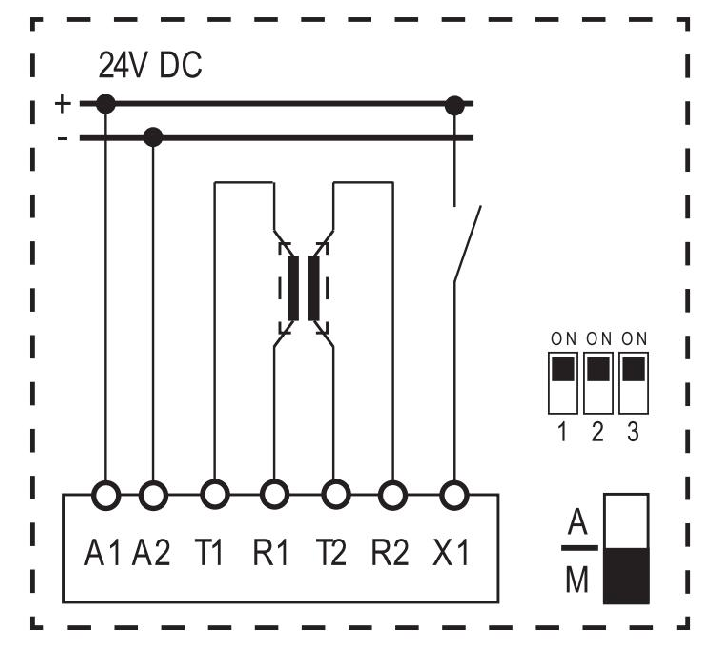

6. 双通道 4 线触边/地毯安全输入，带手动复位
Dual channel 4-wire edge contact/carpet safety input with manual reset
Dual channel 4-wire edge contact/carpet safety input with manual reset

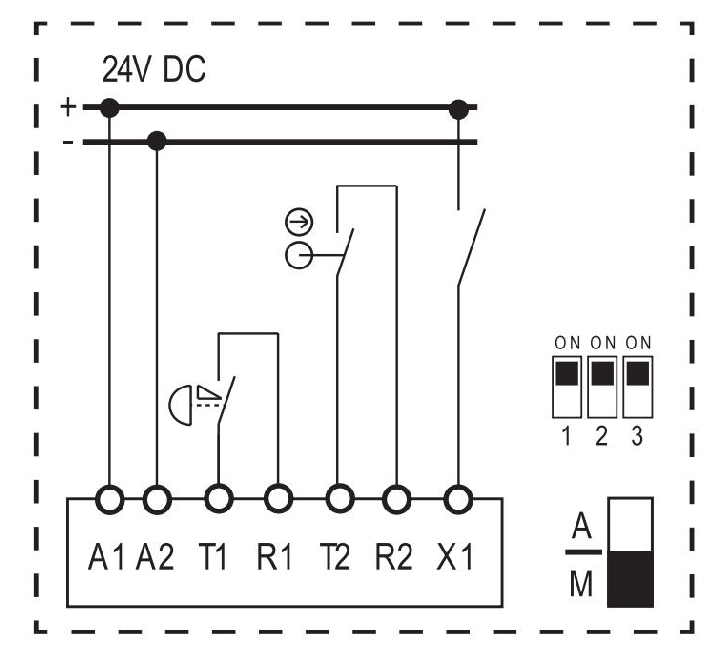

7. 单通道急停门锁安全输入，带手动复位
Single-channel emergency stop door lock safety input with manual reset
Single-channel emergency stop door lock safety input with manual reset

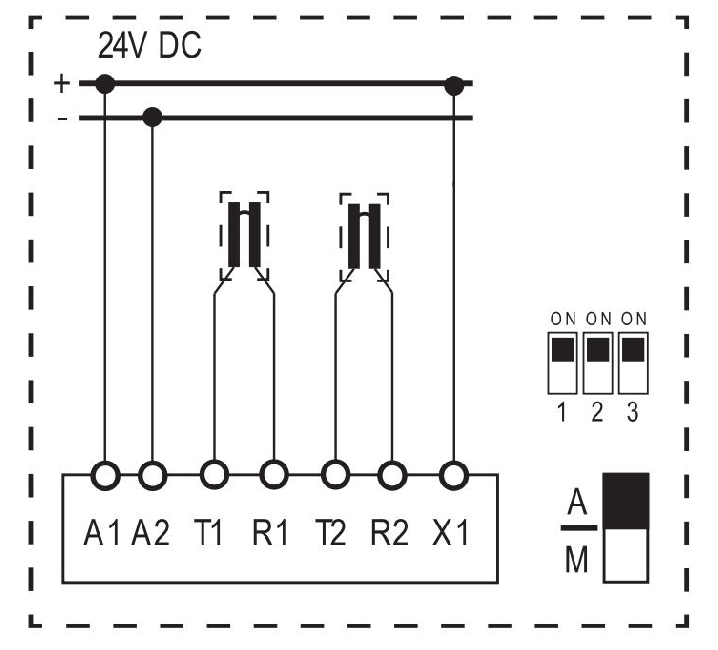

8. 常闭触边/地毯安全输入，带自动复位
Normally closed contact edge/carpet safety input with automatic reset
Normally closed contact edge/carpet safety input with automatic reset
| 类型 Type | 型号 Model |
|---|---|
| NPN 型 | TSR-31N |
| PNP 型 | TSR-31P |
